500*1800mm UHP graphite electrodes in ready stock
500*1800mm UHP graphite electrodes in ready stock
Advantage of UHP grade graphite electrode:
1.Low ash content
2.Low resistance
3.High density and flexural strength
4.Good oxidation resistance
5.Low pollution
6.Not deformed
Product Introduction

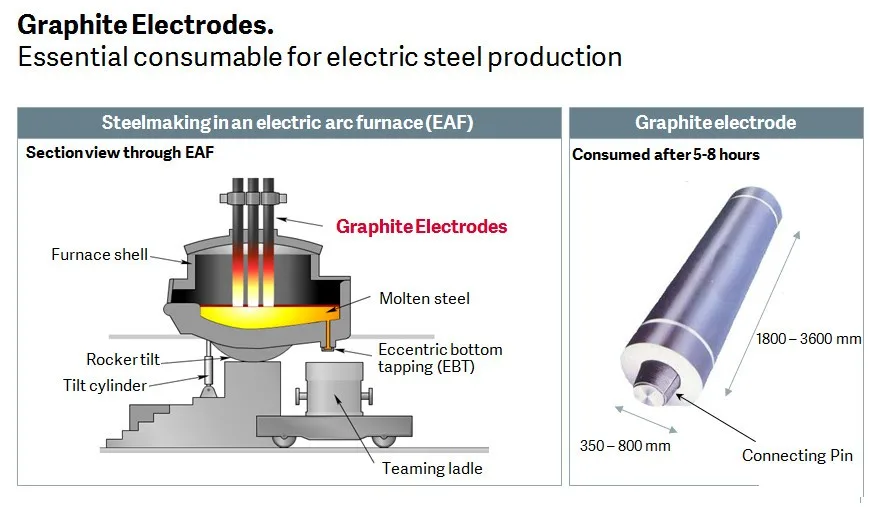

Graphite electrode:
There are several grades of graphite electrodes, we can match the grade with the application to lower your melting costs. Please click through to see properties of the graphite electrodes we can offer, RP grade, HP grade, SHP grade and UHP graphite electrodes.
Product Parameters:
|
Item
|
RP grade
|
HP grade
|
UHP grade
|
||||
|
UNIT
|
150-200mm
|
225-350mm
|
400-500mm
|
||||
|
Resistance(MIN)
|
Electrode
|
μΩm
|
9.0
|
9.0
|
9.0
|
7.0
|
6.0
|
|
Nipple
|
7.5
|
7.5
|
7.5
|
5.5
|
5.0
|
||
|
Flexural Strength(MAX)
|
Electrode
|
Mpa
|
9.8
|
7.8
|
6.4
|
10.5
|
10.5
|
|
Nipple
|
13.0
|
13.0
|
13.0
|
14.0
|
16.0
|
||
|
Elastic Modulus(MAX)
|
Electrode
|
GPa
|
9.3
|
9.3
|
9.3
|
12.0
|
14.0
|
|
Nipple
|
13.7
|
13.7
|
13.7
|
14.0
|
15.0
|
||
|
Density(MAX)
|
Electrode
|
g/cm3
|
1.52
|
1.52
|
1.52
|
1.60
|
1.65
|
|
Nipple
|
1.63
|
1.68
|
1.68
|
1.70
|
1.72
|
||
|
CTE(100-600℃) MIN
|
Electrode
|
×10-6/℃
|
2.9
|
2.9
|
2.9
|
2.4
|
1.5
|
|
Nipple
|
2.7
|
2.8
|
2.8
|
2.2
|
1.4
|
||
|
Ash Content
|
%
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
|

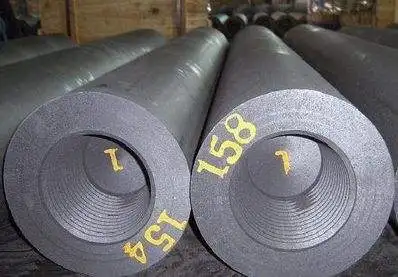

Product Details Show:
Why Choose Us:
About us
1, the company professional to do graphite electrodes.

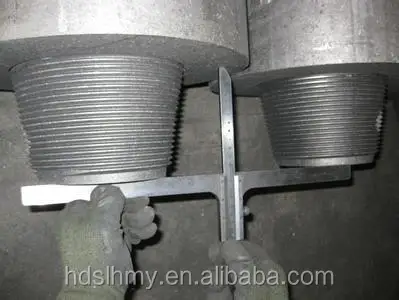

Quality Control
2, the quality of graphite electrodes are guaranteed from material purchasing.

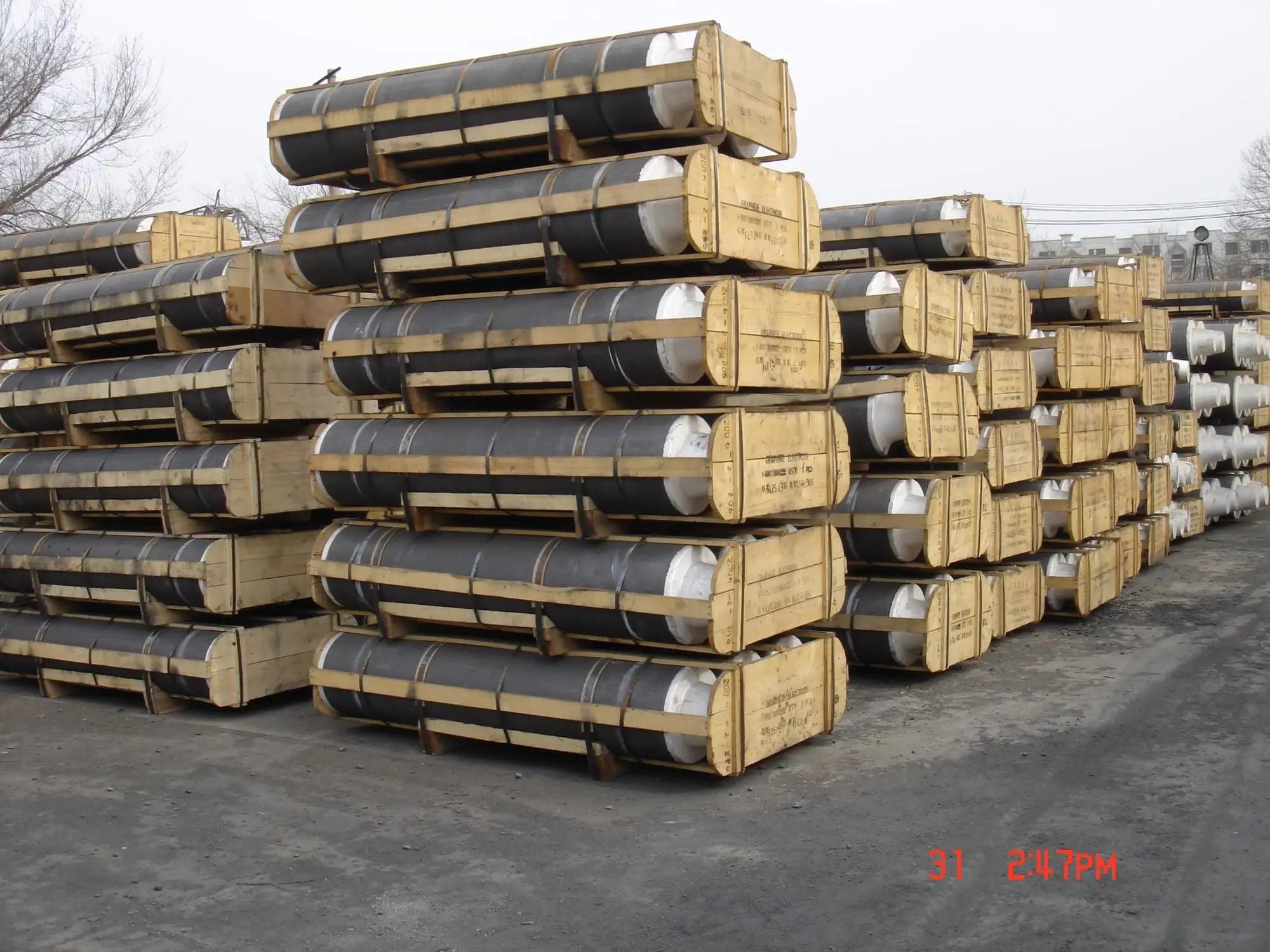

Production&Stock
3, stable production quantity make sure stock enough to shortage the delivery time.

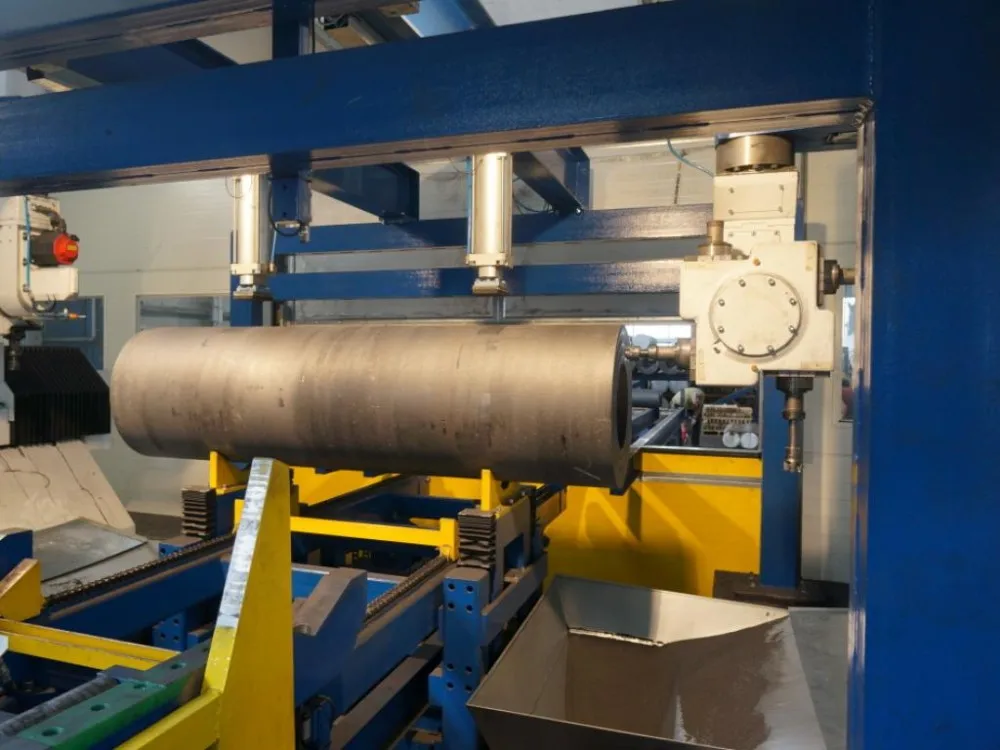

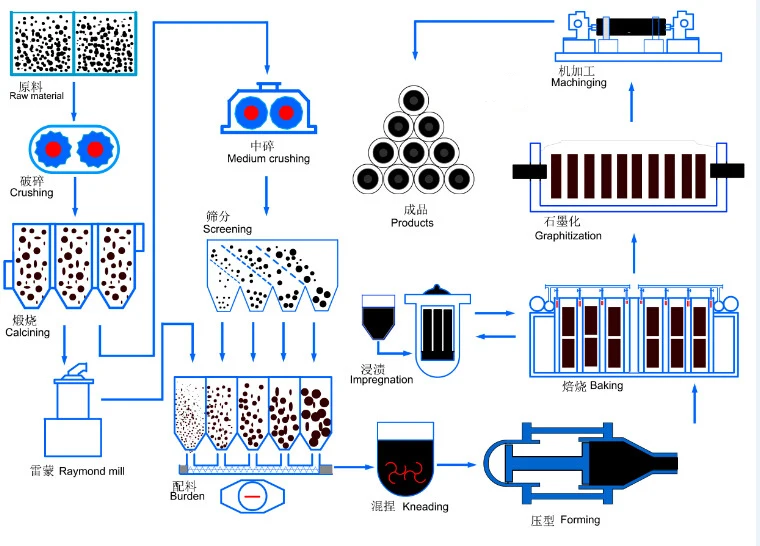

Product Processing:

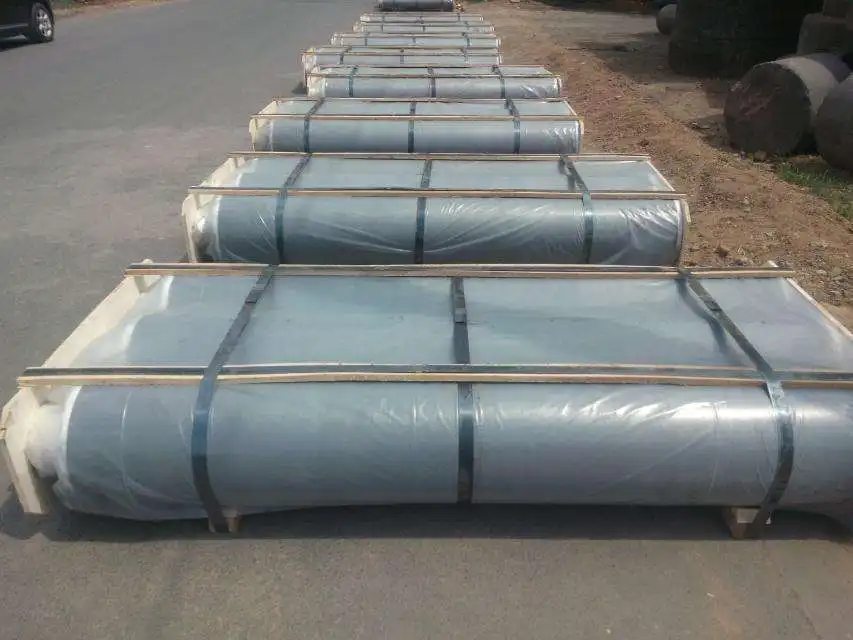

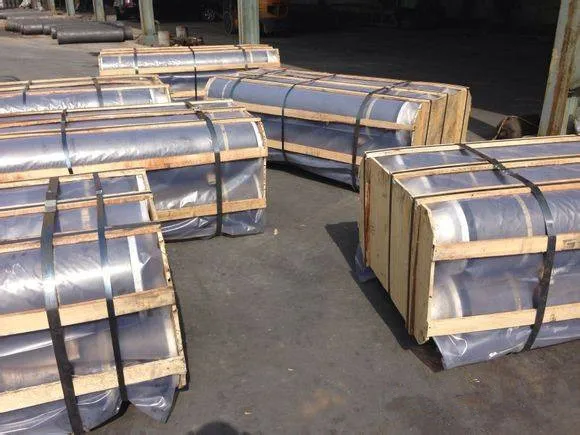

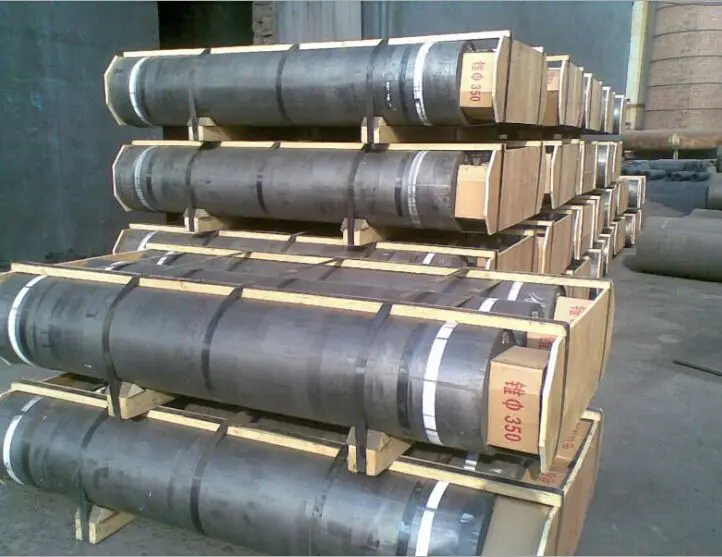

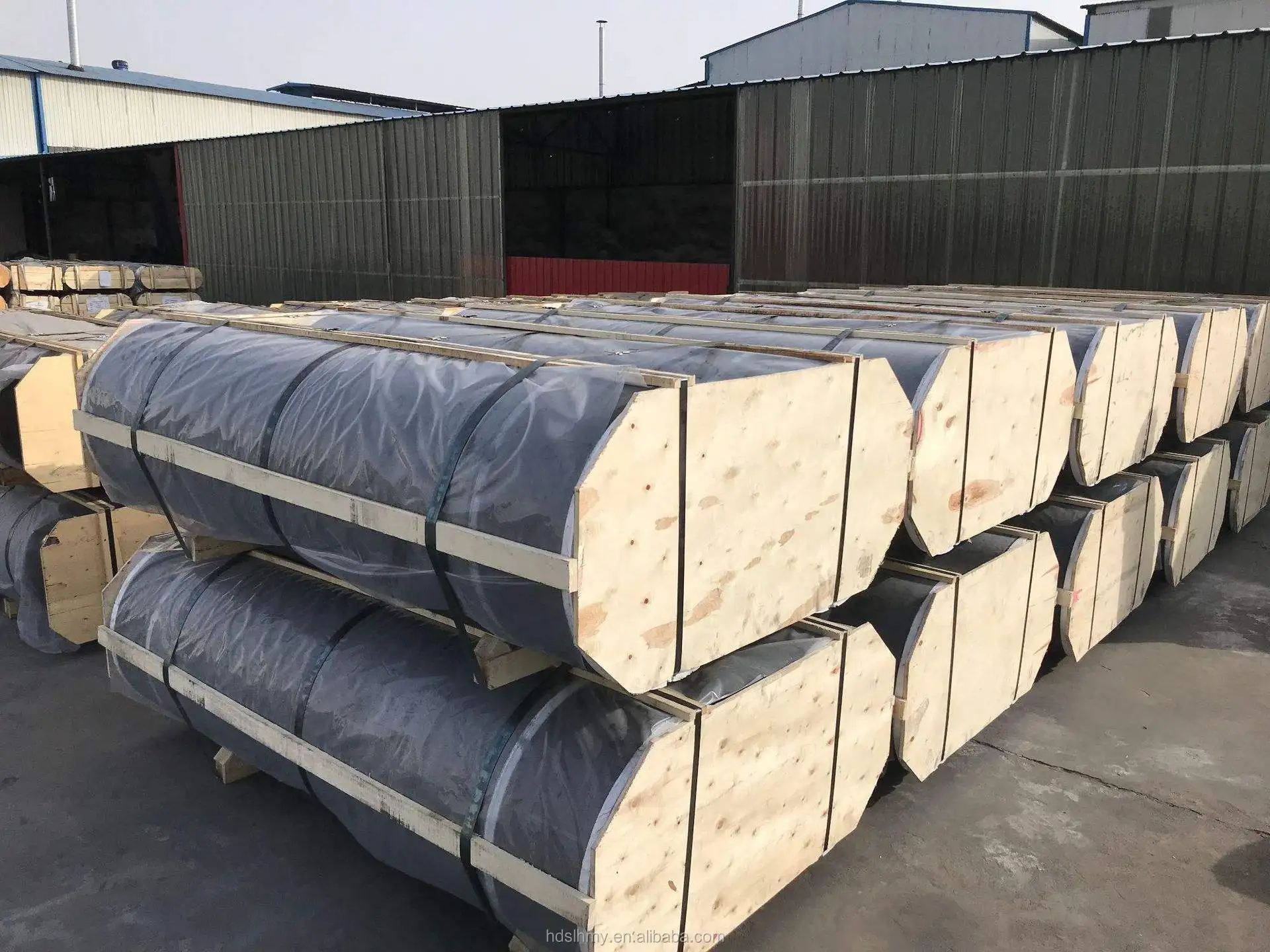

Product Packing:
